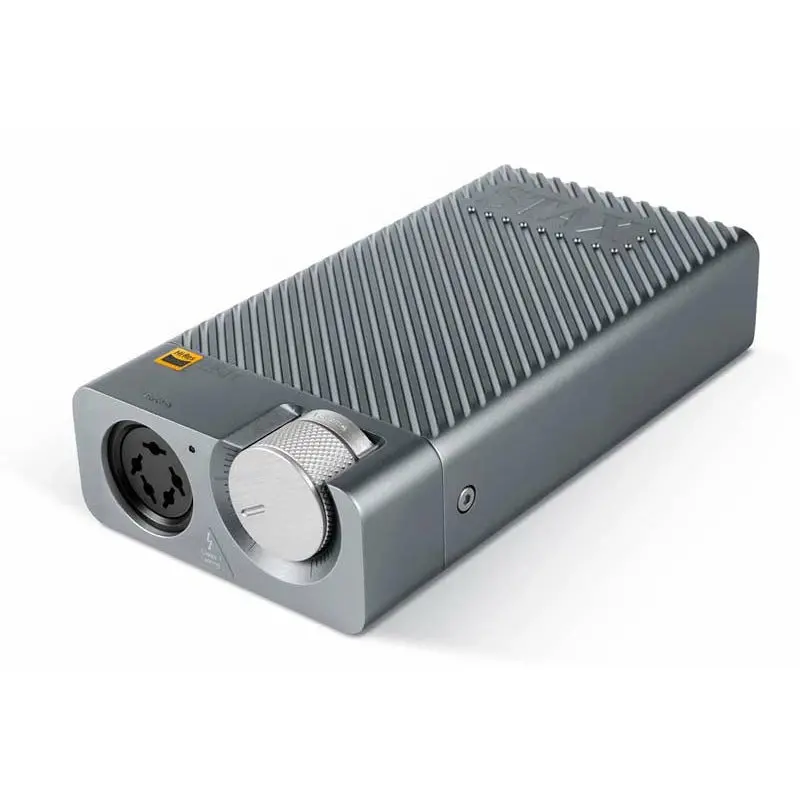

Portable Amplifier for Earspeakers

The SRM-D10 is the world’s first compact electrostatic amp/DAC. Enjoy the freedom of using all modern STAX electrostatic headphones wherever you go. Its built-in high-resolution DAC plays audio files up to DSD128, capturing every nuance with remarkable clarity.

Battery-powered with a rechargeable Li-ion built-in battery pack, the SRM-D10 offers user-selectable line-in and USB DAC options for versatile connectivity. Housed in an all-aluminum chassis, it combines a sleek design with robust durability.

The SRM-D10 features a 5-pin PRO bias STAX earspeaker output, ensuring optimal performance with your STAX headphones.

Features

• Compact electrostatic headphone amp/DAC
• Battery-powered with a rechargeable Li-ion built-in battery pack
• High-resolution Digital-to-Analog converter supporting up to DSD128
• User-selectable line-in and USB DAC inputs
• All-aluminum chassis for a sleek, durable design

Specifications

• Output: 5-pin PRO bias STAX earspeaker output
• Input Options: Micro USB, 3.5mm Analogue
• Supply Voltage: DC 14V (charger included)
• Frequency Response: 20Hz – 40KHz (+0dB, -3dB)
• Rated Input Level: 230mV (100V output)
• Harmonic Distortion: <0.025% (1KHz–10KHz)
• Input Impedance: 10KΩ (analog input)
• Maximum Output Voltage: 200Vr.m.s (100Hz–10KHz)
• Power Consumption: 6.4W (USB input) / 5W (analog input)
• Recommended Operating Temperature: 0–35°C, <90% RH (No condensation)
• Dimensions: 75(W) x 32(H) x 141(D) mm
• Net Weight: 450g
