MM Cartridge

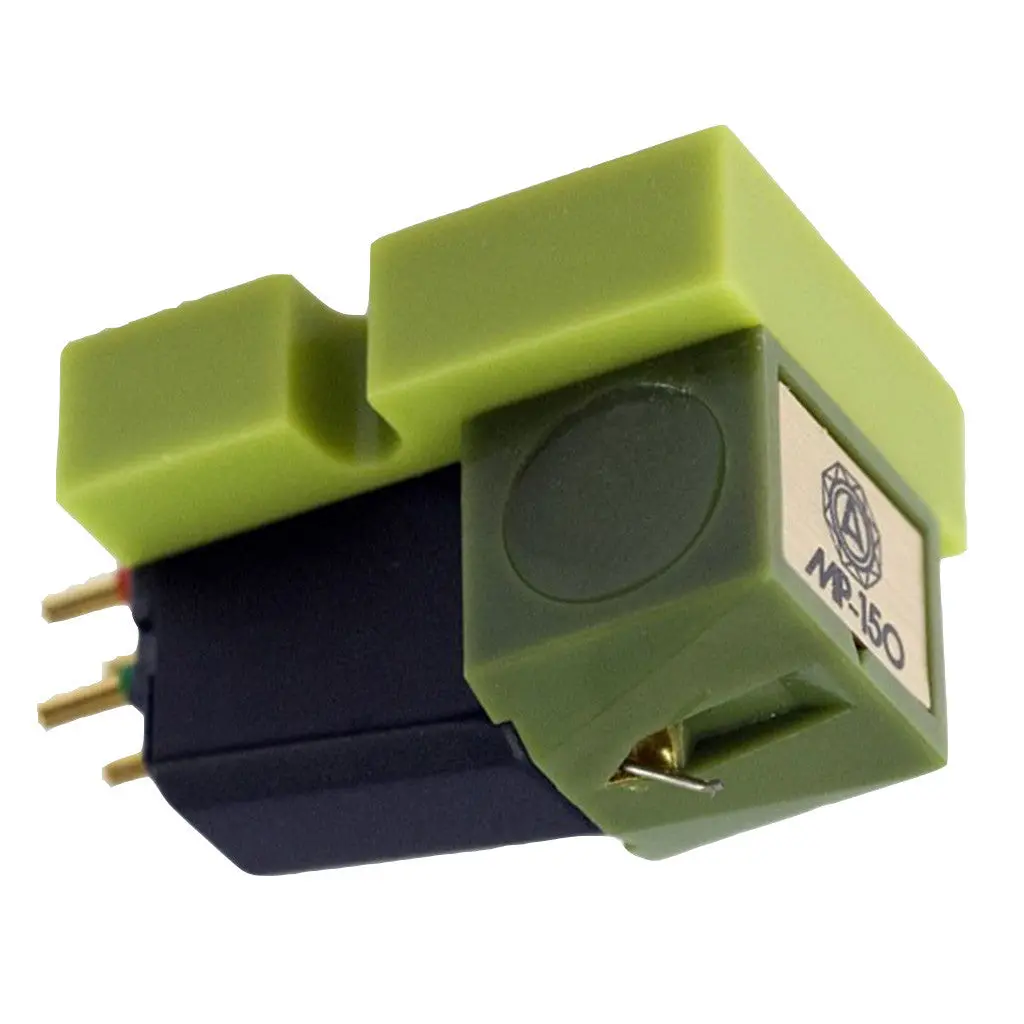

The Nagaoka MP150 phono cartridge offers superior clarity, detail and dynamic contrast.

Features

• SuperFine polished special elliptical diamond stylus

• Powerful samarium cobalt magnet

• Hardened low-mass, tapered aluminium alloy for very high fidelity

• Carbon Fibre-reinforced plastic shoe

• Anti-ferro magnetic permalloy shield casing

Free Turntable setup

We carefully set up every turntable and cartridge we sell. So if you’re new to turntables or have decades of experience, you know you’ll be getting the most enjoyment from your system. You can be safe in the knowledge that you can take your turntable home, plug it straight in and start enjoying good music without any worry of something being setup incorrectly.

Specifications

Type: Moving Magnet

Cantilever: Hardened, low-mass tapered cantilever

Stylus type: SuperFine elliptical diamond

Weight: 6.5 grams

Output voltage: 4.5 mV (5cm/sec)

Frequency characteristic: 20 – 20,000 Hz

Channel balance: Better than 1.5 dB

Channel separation: Better than 24 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 6.0 x 10-6 cm/dyne

Static Compliance: 18 x 10-6 cm/dyne

Tracking force range: 1.5 – 2.0 g

Break-in period: 30 hours

Replacement stylus: JN-P150
