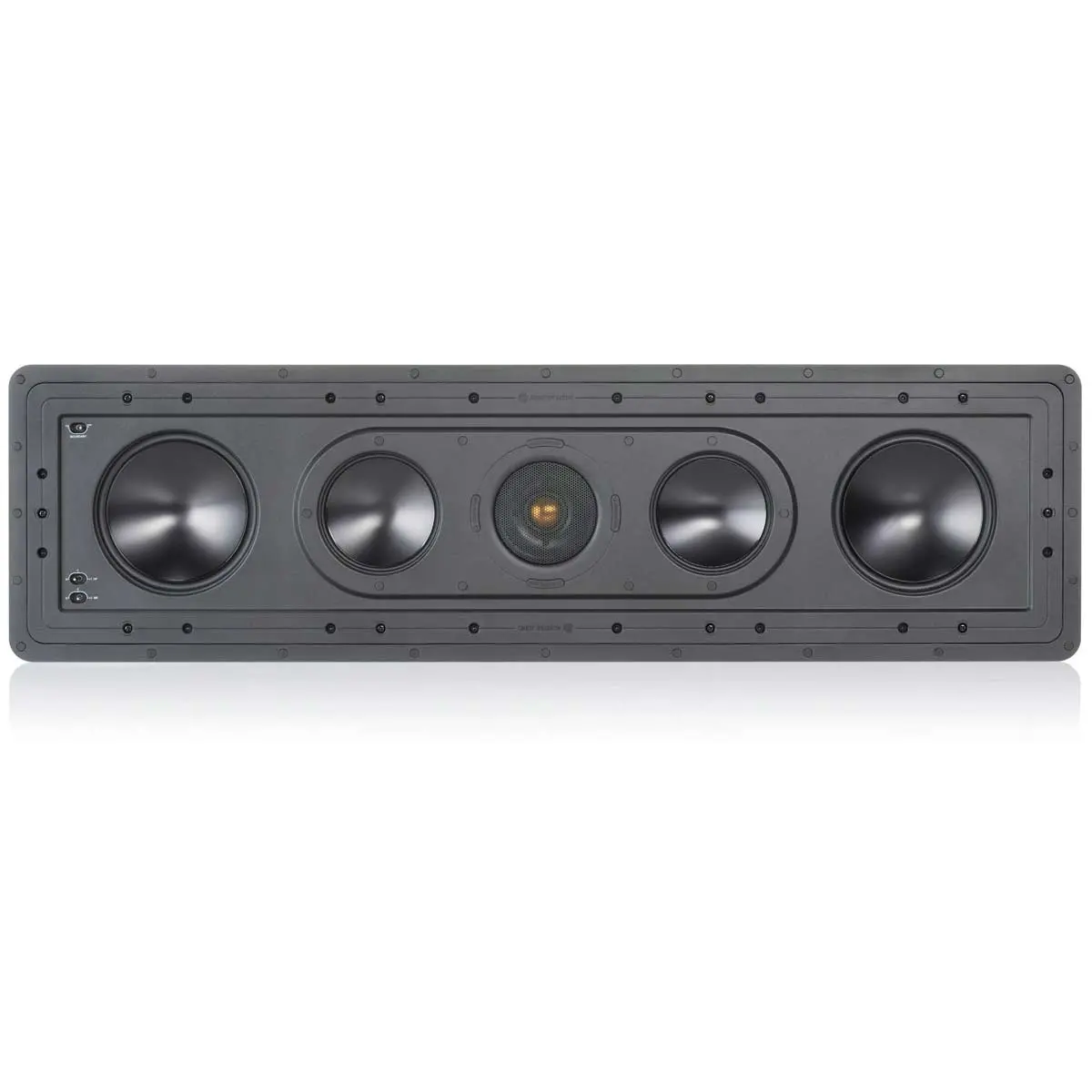

Monitor Audio CP-IW260X In-Wall Speaker

The luxury CP-IW260X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance. The CP-IW260X features Monitor Audio’s signature C-CAM® (Ceramic-Coated Aluminum/Magnesium) cone material deployed in dual 6.5” bass drivers and twin 4” mids astride a gold dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Sold as single units.

Specifications

• Dual 4” C-CAM® mid-range drivers – featuring under hung voice coil
• 25mm (1”) C-CAM Gold Dome tweeter
• Portrait or landscape orientation
• Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
• Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
• High overall efficiency and maximum SPL for powerful home theater installations
• High power handling
• Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
• High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
• Patented Tri-Grip® fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
• Overall Depth:(including grille): 102mm (4”)
• Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
• Paintable grille to blend with the living environment
• High quality bi-wire terminal connections – provide increase in performance particularly when a bi-amplifier configuration is specified.

• Frequency response: 50Hz – 60kHz (-6dB typical in room response)
• Power Handling (RMS): 150W
• Adjustment Controls: Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
• Mounting depth: 96mm
• Cable Connection: High quality bi-wire terminal connections
• Impedance (Nominal): 6Ω
• Recommended Amp Requirements: 60 – 150W
• Overall Dimensions:(including grille) (H x W): 907 x 257mm
• Fixing type: 10 x Tri-Grip® Dog leg fixings
• Sensitivity (1W@1M): 89dB
• Crossover Frequency / Slope: L.F – 500Hz @ 12dB/Octave M.F -500Hz @ 12dB/Octave. 3KHz @ 18dB/Octave H.F – 3KHz @ 18dB/Octave
• Overall Depth:(including grille): 102mm (4”)
• Construction Material: Cast Polymer enclosure (RoHS2 Compliant)
• Maximum SPL (@1M. Installed/in room): 113.8 dBA
• Drivers Unit Complement: 2 x 6.5” C-CAM Bass drivers 2 x 4” C-CAM Mid-range drivers 1 x 25mm (1”) C-CAM Gold Dome tweeter
• Cut Out Dimensions:(H x W): 880 x 230 mm
• Weight: 11.98kg
