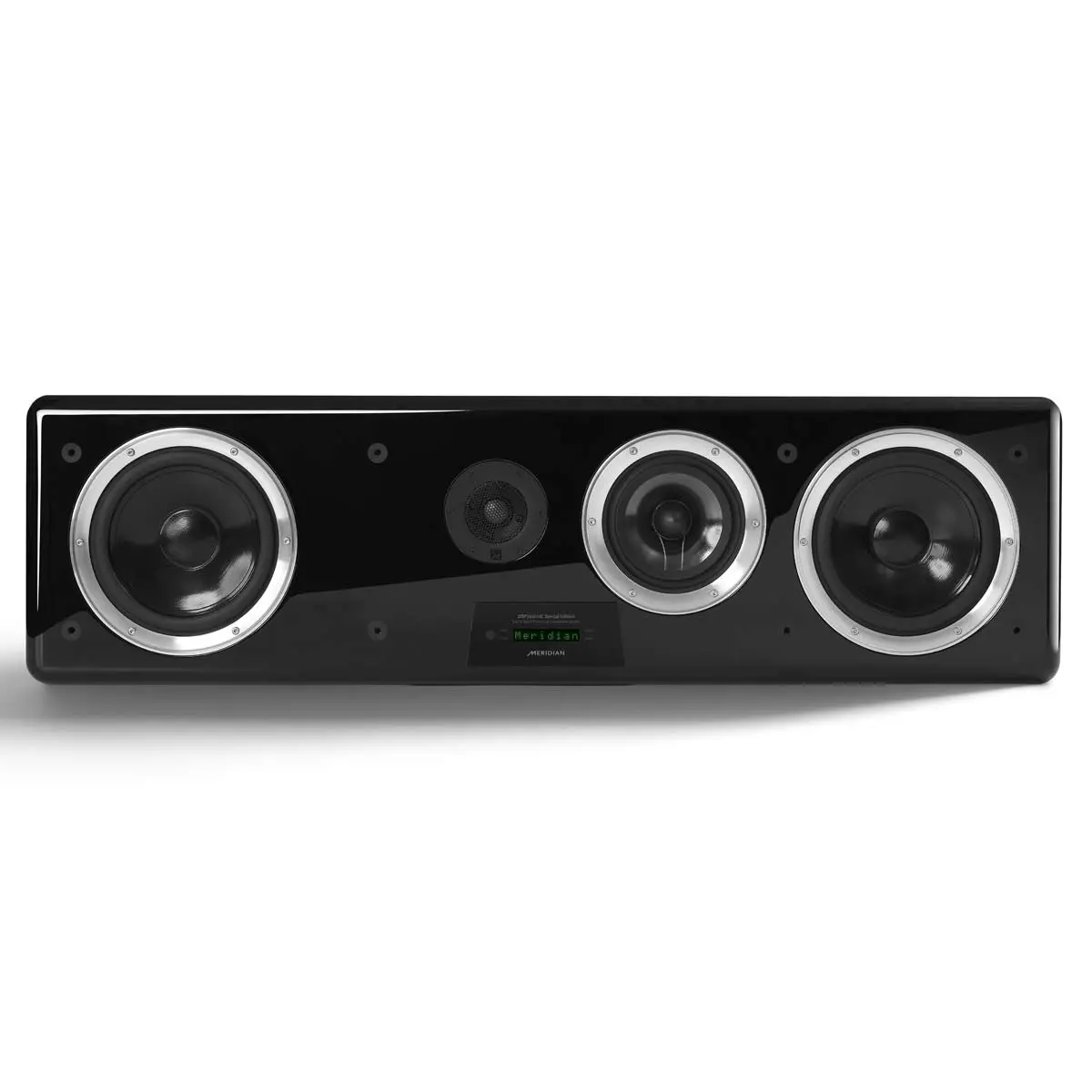

SPECIAL EDITION DSP7200HC DIGITAL ACTIVE LOUDSPEAKER

Perfect for movies and music, the Special Edition DSP7200HC is an ideal partner for both Special Edition DSP7200 and Special Edition DSP8000 in a multi-channel system. The SE DSP7200HC is designed for mounting under a large-screen TV, behind an acoustically-transparent projection screen and in systems that include Meridian free-standing or in-wall loudspeakers.

The Special Edition DSP7200HC provides sound that is incredibly lifelike in scale and tone. This horizontal centre-channel loudspeaker offers Enhanced Bass Alignment that corrects the delays inherent on low frequencies, resulting in a sweeter, more natural sound. Our unique Centre Elevation technology allows the Special Edition DSP7200HC to be placed below the screen while having its sound image match perfectly with the on-screen action, creating an immersive movie experience.

Specifications

AUDIO INPUTS: Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support

AUDIO OUTPUTS: Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support

PERFORMANCE: Peak SPL: 118dB at 1m (music material) Noise less than 15dB SPL Frequency response in-room within 3dB: 30Hz to over 32kHz

AMPLIFIERS: 4 x 150W (600W) Overall distortion typically <0.02% at any frequency or level

BASS DRIVERS: 2 x 200mm long-throw

MID DRIVER: 160mm polypropylene

BERYLLIUM DOME TWEETER: 25mm (1”) Meridian piston in short-horn, beryllium dome with silver voice-coil

DSP FEATURES: 2 x Freescale 56367 running at 150MHz FIFO memory buffer input for the lowest possible jitter from almost any source Linear-phase mid–top crossover; 6th-order Linkwitz-Riley bass–mid crossover Bass protection Response correction for the whole loudspeaker Hybrid analogue/digital volume control

DISPLAY: Eight character display with additional status indicators; can be blanked in use

DIMENSIONS/WEIGHT: HEIGHT: 295mm [11.6in] WIDTH: 1060mm [41.7in] DEPTH: 478mm [18.8in] (At deepest point)

WEIGHT: 64kg [141lbs] POWER 17VA standby; 920VA max
