Description

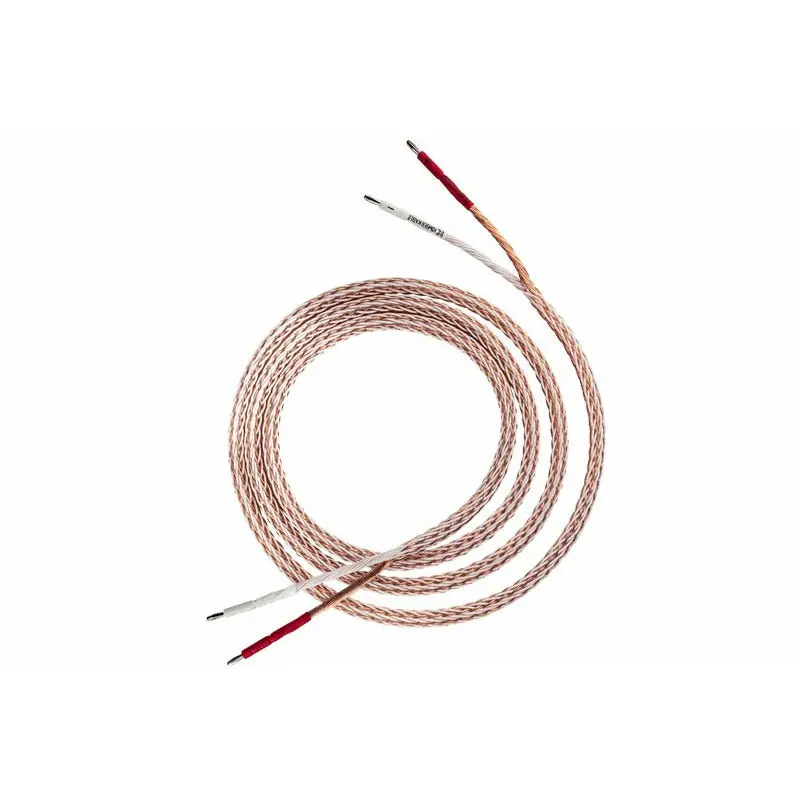

High current braided loudspeaker cable

KIMBER KABLE 12TC consists of twenty-four individual TCSS conductors, twelve clear and twelve white, arranged in a large format braid. Individual conductors are Hyper-pure copper and utilise Kimbers proven VariStrand™ conductor geometry. The insulating dielectric is a high pressure-low temperature-extruded Teflon®. The aggregate wire size is two 8 AWG conductors.

Custom lengths and connection options are available on request. These cables are custom made to order. On receipt of your order, we aim to despatch this item within 3 working days.

“Smoother, more extended top end from the new model; a better sense of ease and relaxation, not to mention more confident grip and control in the presentation; a more pleasing rendition of bloom and atmosphere, a greater sense of ‘opening out,’ as it were, especially from recordings rich in ambience.” – The Absolute Sound magazine (October 2010).

Features

• Bi-wirable
• Clear and white Teflon dielectric
• 24 conductors, 12 white (-) and 12 clear (+)
• Parallel capacitance: 1.4 nF @ 20 kHz
• Series inductance: 0.32 µH @ 20 kHz
• DC loop resistance: 0.014 Ω
• Total reactance: 0.04 Ω @ 20 kHz
• Frequency response: 0.5 dB: DC – 500 kHz
• Price is per pair

Connector options

Specifications

• (Cp) parallel capacitance: 494 pF / meter
• (Ls) series inductance: 0.09 uH / meter
• (Rdc) dc loop resistance: 0.005 Ohm / meter
