Description

A True cinematic experience

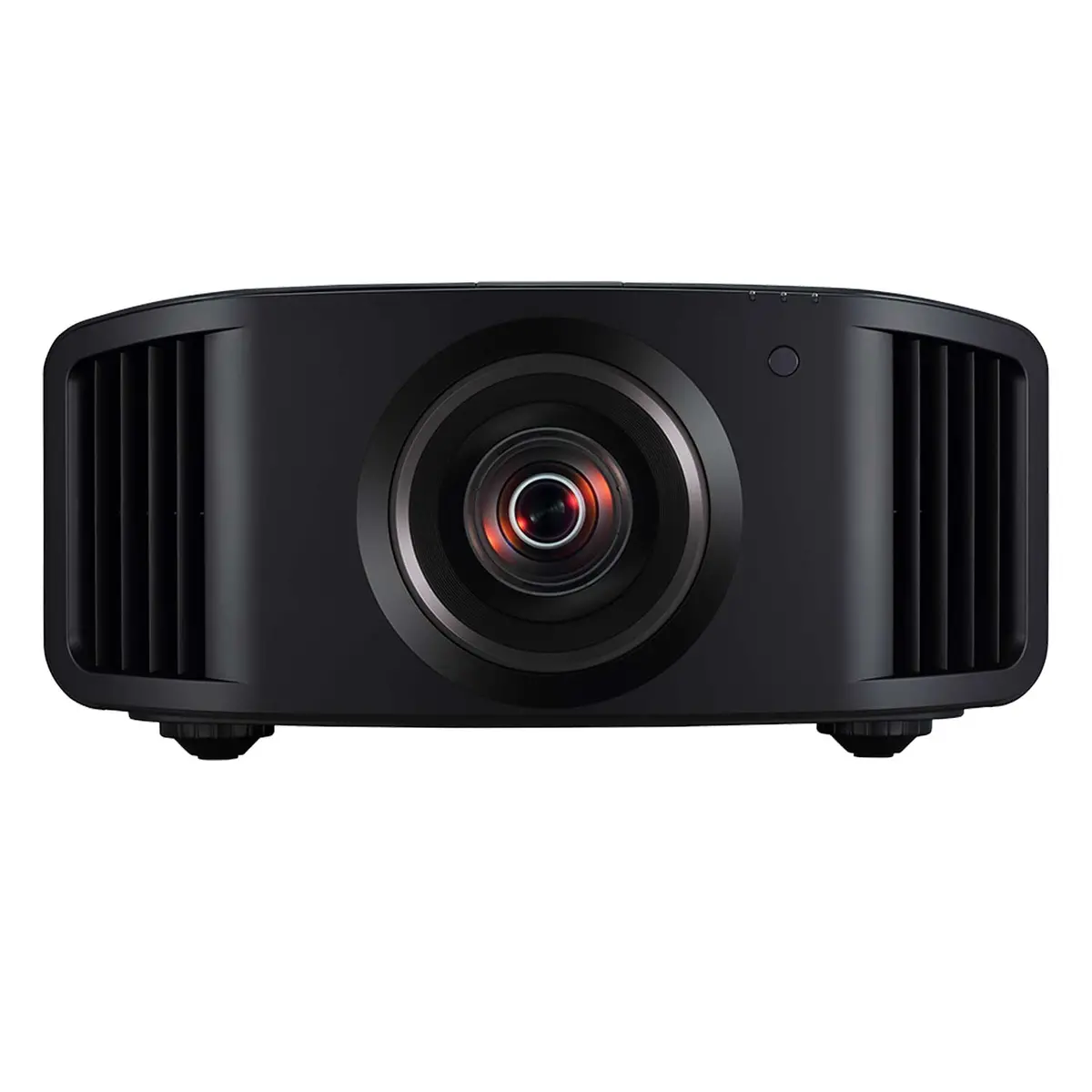

The JVC DLA-NZ800 is a high-performance 4K projector that offers a stunning visual experience. Its native 4K resolution delivers incredibly sharp and detailed images, allowing you to see every pixel of your favorite movies and TV shows. Its long-lasting laser light source offers consistent brightness and eliminates the need for frequent lamp replacements.

The DLA-NZ800’s compact and stylish design makes it a great choice for those with limited space. It can easily fit into your home theater setup without taking up too much room.

Specifications

D-ILA Technology: Yes
Chip Type: 3rd Generation 0.69-inch 4K D-ILA device
Native Resolution: 4096 x 2160
Number Of Chips: 3
8K/e-shiftX: Yes
Display Resolution: 8192 x 4320
Light Source: Laser
Type: BLU-Escent Laser Diode
Life Time (Standard Mode): 20000 hours
Brightness: 2700 lm
Dynamic Contrast: ∞ : 1
Native Contrast: 100000 : 1
Dynamic Light Power control: Yes
Modes: Mode 1 (gentle), Mode 2 (strong), Off
Manual Aperture: Yes
Range: -15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut: Yes
100% REC 709: Yes
Color Bit Depth: 12 bit
ISFccc Certification: Yes
HDR10:Yes
HDR10+: Yes
Frame Adapt HDR: Yes
Theater Optimizer: Yes
HLG: Yes
Auto Tone Mapping: Yes
Mastering Info Display: Yes
Info data: MaxCLL and MaxFALL mastering data
HDR Picture Modes : BT.709 / BT.2020 / DCI / HDR
Lens
Zoom: 2 x
Throw Ratio: 1.43-2.92:1
Diameter: 65 mm
Material: All-glass
Build: 17-element, 15-group in full aluminium lens barrel.
Lens Shift: Yes
Range Horizontal: ± 34 %
Range Vertical: ± 80 %
Motorized Zoom: Yes
Motorized Shift: Yes
Motorized Focus: Yes
Projection Display size (diagonal): 60 – 200 inch
Memory Function: Yes
Number of user presets: 10
Lens Cover: Yes
HDMI Inputs: 2
Data Rate: 48 Gbps
HDCP Version: 2.3
8K60P signal input: Yes
4K120p signal input: Yes
4K60P signal input: Yes
Video Signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
PC Signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range: Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes: A and B (older hardware may need to use B settings)
3D Capability: Yes
3D Emitter (Optional): Yes, PK-EM2
3D Glasses (Optional): Yes, PK-AG3
Product Dimensions (WxHxD): 500 x 234 x 505mm
Product Weight: 23.1 Kg

Package Dimensions (WxHxD): 640 x 415 x 665mm
Package Weight: 28.5 Kg
